Ramptec 3 Foot Aluminium Wheelchair / Scooter Ramp Portable 86cm Wide with Grit Tape

SKU: RTSF1903GTWD

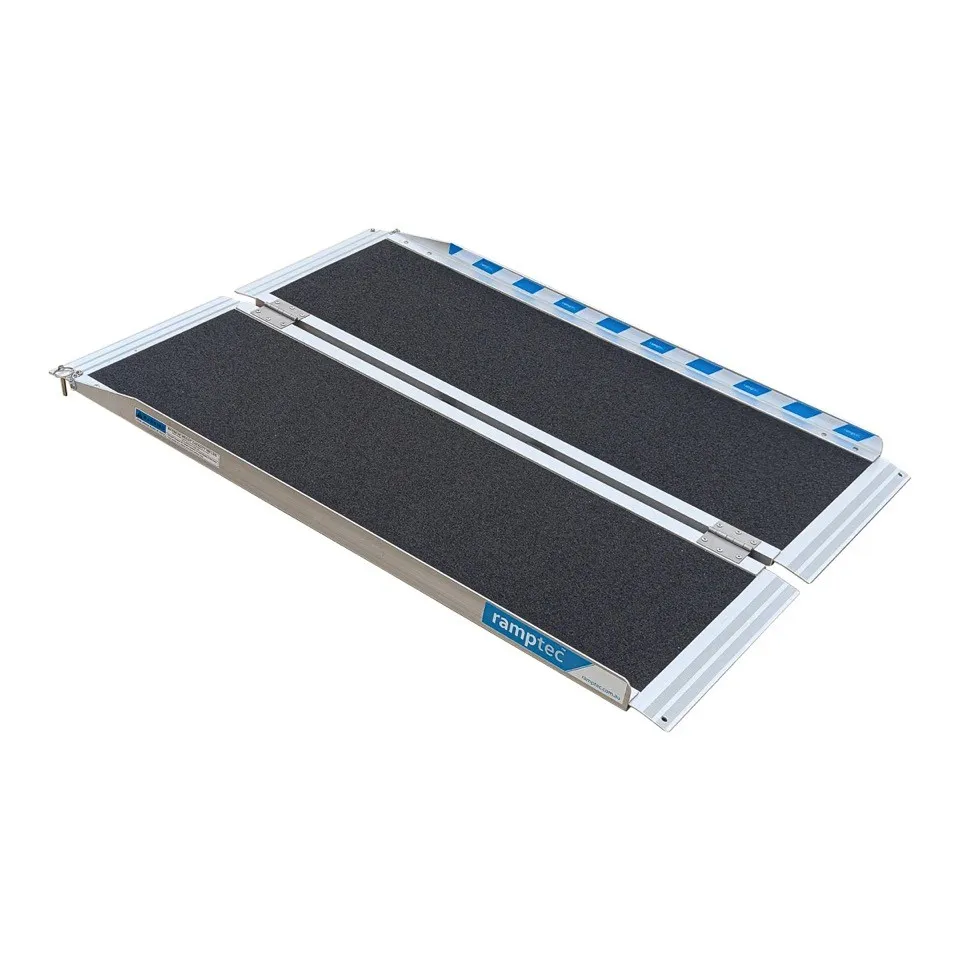

Loading and unloading will be made easier with this Portable Aluminium Folding Loading Wheelchair Ramp. Various sizes are available ranging from 3 Feet – 6 Feet. Made from super strong aluminium construction which is light-weight and portable to use. The ramp is centre folding with a convenient carry handle.
Ideal for indoor and outdoor use with a maximum load capacity of 272kg. (Weight rating based on evenly distributed load on 2 axles)

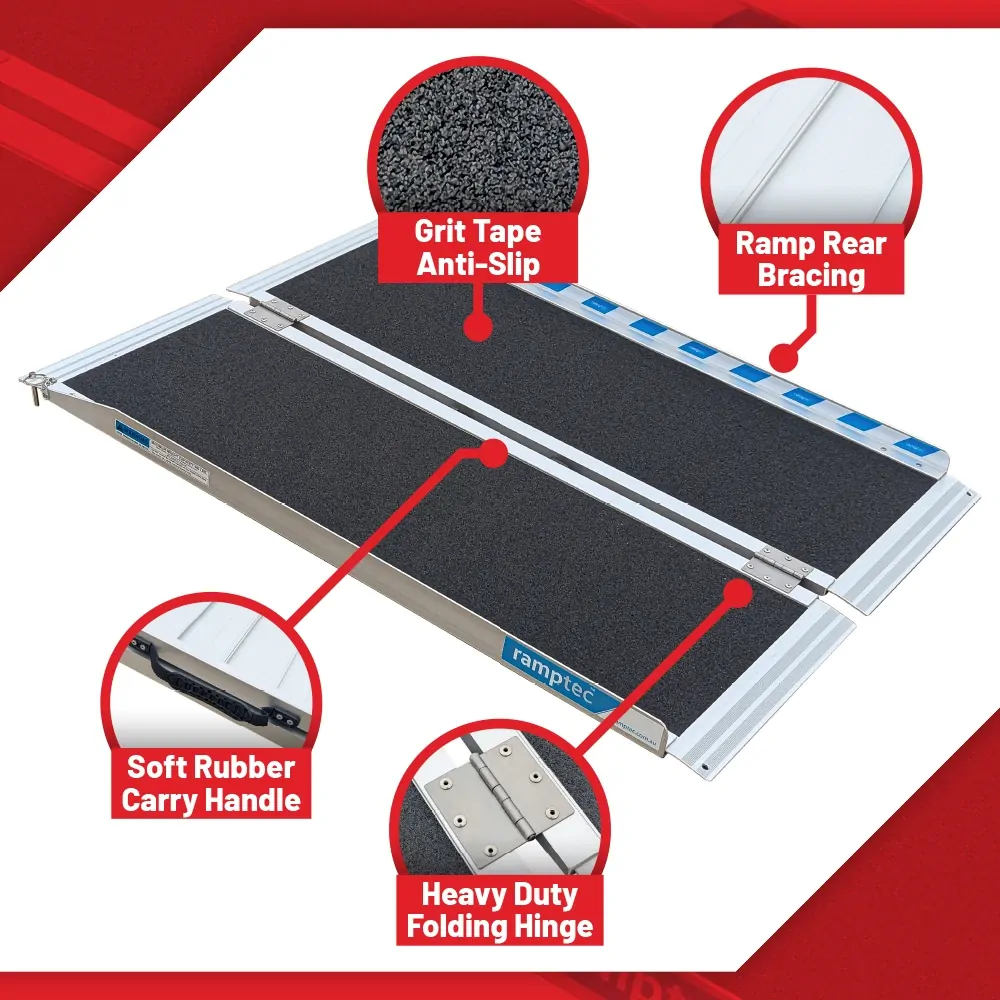

Features:

Portable Aluminium Folding Loading Wheelchair Ramp
Sizes available from 3 Feet Long to 6 Feet
Maximum Load Capacity of 272 kg
Super Strong Aluminium Construction
Light-weight & Portable
Suitable for Curbs, Steps & many more applications
Surface - Grit Tape
Multi-purpose, Ideal for Indoor & Outdoor Use

This ramp is wider than the standard wheelchair ramp normally available

Ramp not designed for permanent outdoor use, as grit tape surface my deteriorate if exposed to the elements for extended periods

Specifications:

A gradient ratio of 1:10 has been applied below.

These are the recommended maximum heights based on Australian standards

3 Foot / 90cm Ramp - Maximum height of 9cm
4 Foot / 120cm Ramp - Maximum height of 12cm
5 Foot / 150cm Ramp - Maximum height of 15cm
6 Foot / 180cm Ramp - Maximum height of 18cm

Please note: For heights over 19cm, a gradient ratio of 1:14 should be applied

Approximate Size

3 Foot 90cm x 86cm -Weight  8.5 KG
4 Foot 120cm x 86cm - Weight 12 KG
5 Foot 150cm x 86cm - Weight 14.5 KG
6 Foot 180cm x 86cm - Weight 16.5KG
