Mister Hitches Adjustable Ball Mount Extra Heavy Duty 4000kg - MHABM-5XHD
$190
Shipping Calculator
Our
Reviews
Reviews
More From This Category
Australian Owned & Operated
Discounted Australia Wide Shipping
10,000+ Happy Customers
Low Prices
Or 4 interest-free payments of $47.50 with
Learn more.
Notify me when back in stock
Request a Professional Quote
Enter details to generate your PDF quote for Mister Hitches Adjustable Ball Mount Extra Heavy Duty 4000kg - MHABM-5XHD.
OFFICIAL QUOTE
Ramp It Up
Phone: +61 3 9702 4422
Email: info@rampitup.com.au
Web: www.rampitup.com.au
Date:
Quote ID:
Customer Details
Phone:
Email:
Delivery Location
Address:
Suburb:
Postcode:
| Product Description | SKU | Unit Price | Qty | Subtotal |
|---|---|---|---|---|
| Mister Hitches Adjustable Ball Mount Extra Heavy Duty 4000kg - MHABM-5XHD | MHABM-5XHD | $190 | ||
| TOTAL (Including GST): | ||||
Important Quote Information:
Request More Info for Mister Hitches Adjustable Ball Mount Extra Heavy Duty 4000kg - MHABM-5XHD
Request Call Back for Mister Hitches Adjustable Ball Mount Extra Heavy Duty 4000kg - MHABM-5XHD
SKU - MHABM-5XHD
Features

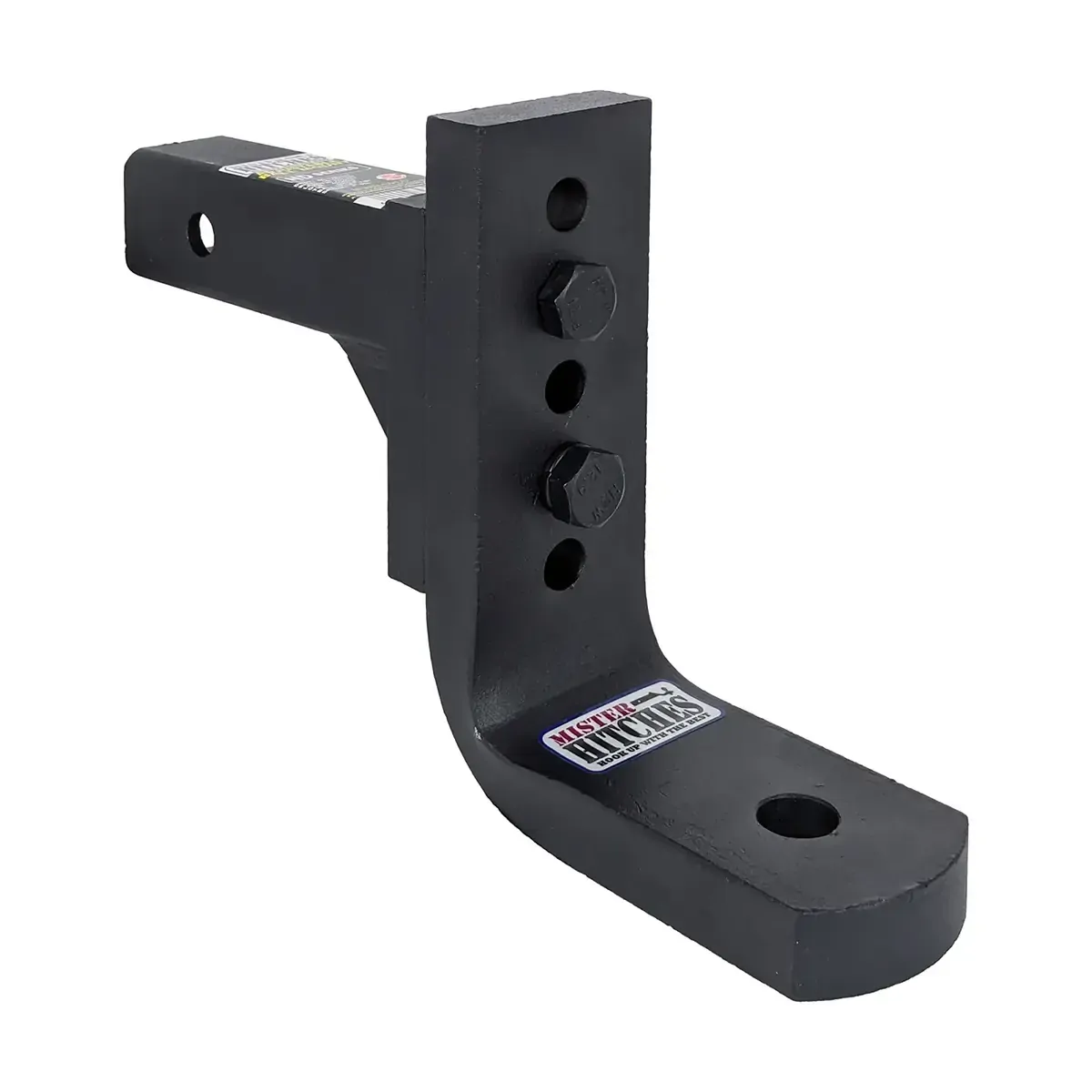

Adjustable Ball Mount Extra Heavy Duty 4000kg
Adjustable & reversible - 12 stages
6 stages of drop
80mm / 110mm / 130mm / 140mm / 160mm / 190mm
6 stages of rise
50mm / 80mm / 105mm / 110mm / 135mm / 165mm
10mm dual support gussets for added strength
New model with 3 pin holes (ranger short shank compatible)

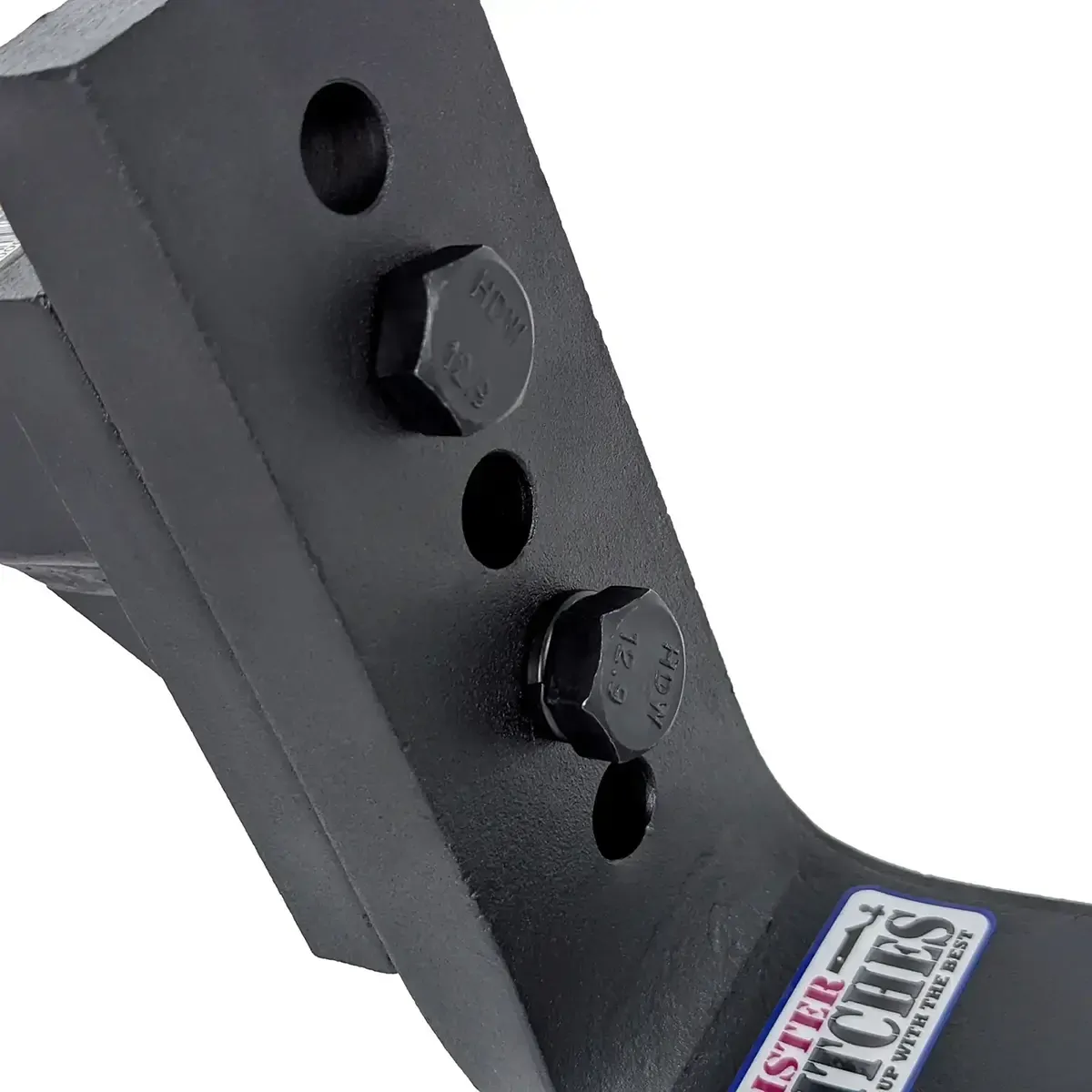

Uses 12.9 grade high tensile 16mm bolts
25mm x 75mm heavy duty ball platform
Matt black seaguard finish
Robotic welded for consistent quality
CNC machined for maximum accuracy
Fits 2"" x 2"" towbar receivers
Suits stone stomper and most couplings
Load Rating: 4000kg
Ball Weight: 400kg
Length: 266mm / 305mm / 331mm (measured from centre of pin hole to centre of ball hole)
End of shank to gusset: 164mm
Measurements are approximate
| SKU | MHABM-5XHD |
| Brand | Mister Hitches |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.100m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.006000000m3 |
SKU - MHABM-5XHD
Features
Adjustable Ball Mount Extra Heavy Duty 4000kg
Adjustable & reversible - 12 stages
6 stages of drop
80mm / 110mm / 130mm / 140mm / 160mm / 190mm
6 stages of rise
50mm / 80mm / 105mm / 110mm / 135mm / 165mm
10mm dual support gussets for added strength
New model with 3 pin holes (ranger short shank compatible)
Uses 12.9 grade high tensile 16mm bolts
25mm x 75mm heavy duty ball platform
Matt black seaguard finish
Robotic welded for consistent quality
CNC machined for maximum accuracy
Fits 2"" x 2"" towbar receivers
Suits stone stomper and most couplings
Load Rating: 4000kg
Ball Weight: 400kg
Length: 266mm / 305mm / 331mm (measured from centre of pin hole to centre of ball hole)
End of shank to gusset: 164mm
Measurements are approximate
| SKU | MHABM-5XHD |
| Brand | Mister Hitches |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.100m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.006000000m3 |
